Overview

Person-in-WiFi 3D pushes Wi-Fi human sensing from single-person or 2D pose estimation toward multi-person 3D pose estimation. The system uses one Wi-Fi transmitter and three Wi-Fi receivers to capture richer spatial reflections from multiple people, then predicts 3D body keypoints in an end-to-end set prediction framework.

Compared with camera-based pose estimation, Wi-Fi sensing preserves privacy and can remain usable under occlusion or poor lighting. Compared with earlier Wi-Fi pose systems, this work avoids large 3D heatmaps and part affinity fields by using a Transformer-based model that directly maps CSI sequences to a set of 3D poses.

The paper reports the first Wi-Fi system for multi-person 3D pose estimation and releases a dataset with more than 97K Wi-Fi samples.

Person-in-WiFi 3D qualitative overview from the paper — Figure 1 from the paper. Person-in-WiFi 3D estimates multi-person 3D poses from Wi-Fi signals and visualizes the corresponding pose outputs.

Main Contributions

Introduces Person-in-WiFi 3D, a Wi-Fi-based system for multi-person 3D pose estimation.
Proposes the Wi-Fi Pose Transformer, which converts CSI signals into multi-person 3D poses in an end-to-end manner.
Uses a set-based Hungarian loss so each person's ground-truth pose is assigned to a unique prediction.
Builds and releases a self-collected dataset with more than 97,000 Wi-Fi samples from 7 volunteers, 8 daily actions, and 3 indoor locations.

Technical Details

The data collection setup uses four ThinkPad X201 laptops with Intel 5300 network cards: one transmitter and three receivers. The transmitter broadcasts Wi-Fi at 5.64 GHz with 30 subcarriers, while the receivers capture CSI at 300 packets per second. An Azure Kinect records RGB-D videos at 15 FPS and provides supervisory 3D pose annotations through the Kinect Body Tracking SDK.

The model contains three main components:

CSI Feature Encoder: tokenizes amplitude and denoised phase features and learns spatial-temporal CSI representations.
Pose Decoder: uses learnable queries to regress a set of candidate 3D body poses and confidence scores.
Refine Decoder: further refines initial pose predictions, inspired by PETR-style refinement.

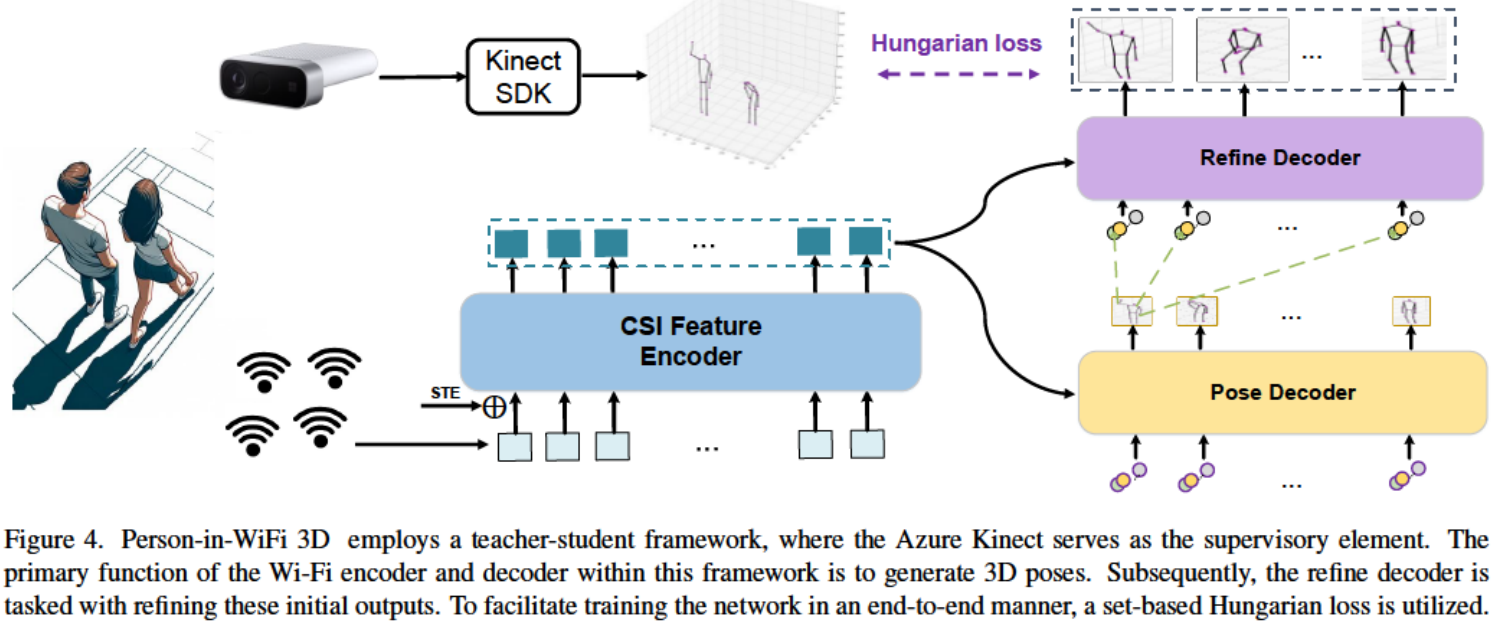

Person-in-WiFi 3D architecture from the paper — Figure 4 from the paper. Person-in-WiFi 3D uses a teacher-student framework with Kinect supervision, a CSI feature encoder, a pose decoder, a refine decoder, and set-based Hungarian loss.

Results

The dataset contains 456 RGB-D clips, 270,000 total video frames, and more than 97,000 cleaned Wi-Fi samples. It covers 1-4 people, 8 actions, and 3 indoor locations with different multipath conditions. After cleaning Kinect tracking failures, the final split includes 89,946 training samples and 7,824 testing samples.

Person-in-WiFi 3D reports 91.7 mm, 108.1 mm, and 125.3 mm MPJPE in 1-person, 2-person, and 3-person scenes, respectively. The overall mean MPJPE is 107.2 mm. The paper also reports that the system can run at 54 FPS, while avoiding the storage and post-processing burden of extending 2D heatmap-based Person-in-WiFi to 3D.

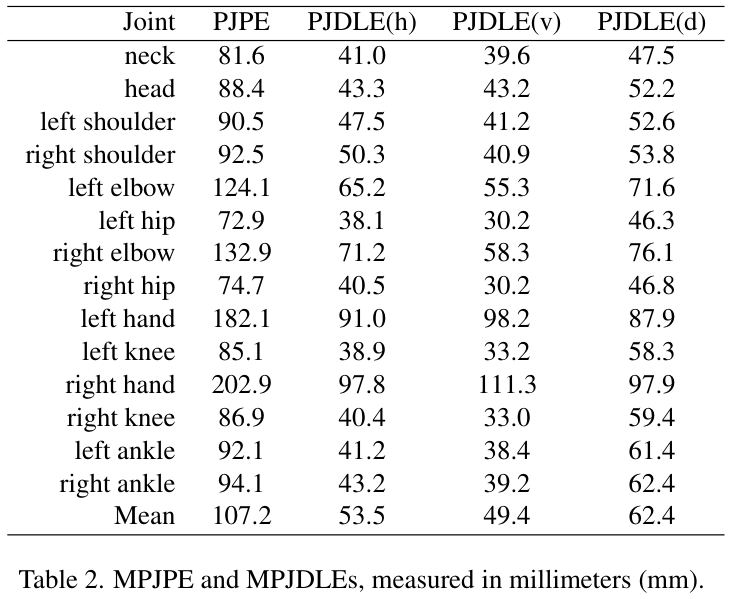

Table 2 from the paper showing MPJPE and MPJDLE per joint — Table 2 from the paper. Main per-joint 3D pose estimation errors measured in millimeters.

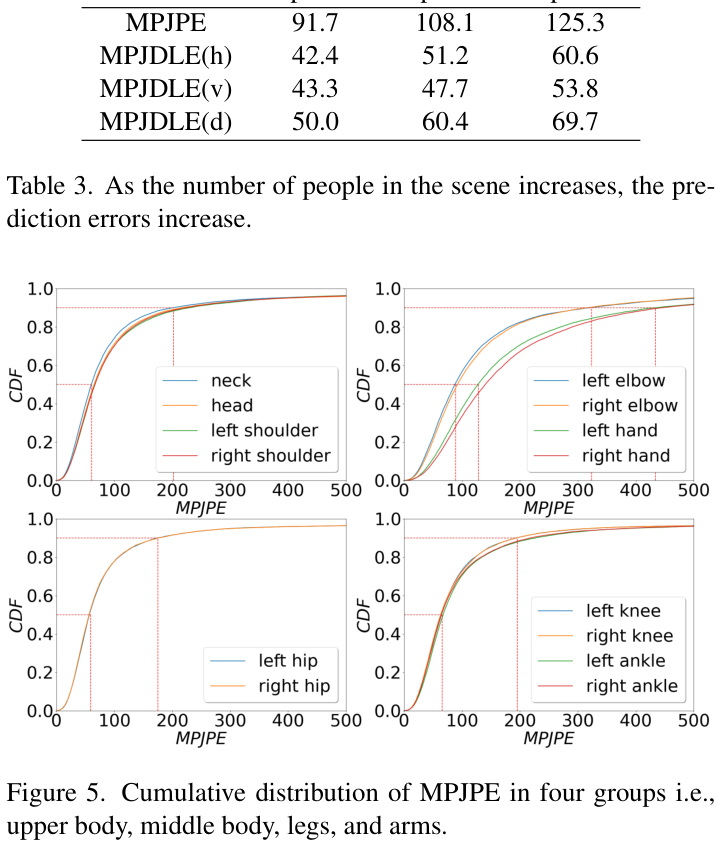

Table 3 and Figure 5 from the paper showing person count effects and MPJPE distributions — Table 3 and Figure 5 from the paper. Errors increase as the number of people increases, and the CDF plots show that arm joints are the most difficult to estimate accurately.

Occlusion and Limitations

The paper highlights that Wi-Fi can still detect people when the visual view is obstructed, which is important for privacy-sensitive and occluded indoor settings. It also reports two limitations: the upper-bound performance depends on Kinect annotation quality, and cross-environment generalization remains challenging because the system uses four distributed Wi-Fi transceivers whose spatial configuration changes across locations.

Figure 7 from the paper showing occlusion examples — Figure 7 from the paper. Person-in-WiFi 3D remains functional when the camera view is obstructed.

Resources

Citation

@inproceedings{yan2024personinwifi3d,
  title = {Person-in-WiFi 3D: End-to-End Multi-Person 3D Pose Estimation with Wi-Fi},
  author = {Yan, Kangwei and Wang, Fei and Qian, Bo and Ding, Han and Han, Jinsong and Wei, Xing},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  pages = {969--978},
  year = {2024}
}
